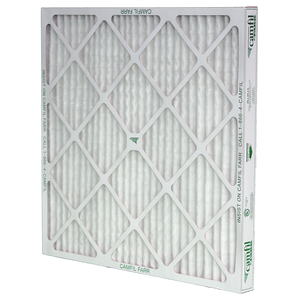

Camfil AP-Thirteen High Capacity MERV 13 Pleated Panel Air Filter - 14x20x1 - Synthetic
The Camfil AP-Thirteen extended surface pleated filter offers filtration for applications that have 1", 2˝ or 4˝ deep filter tracks. The AP-Thirteen is a MERV 13 filter when evaluated per ASHRAE Standard 52.2 and meets the requirements for minimum filtration efficiency, as published in LEED manuals for new or existing buildings. The AP-Thirteen may reduce the size of the HVAC system, saving valuable mechanical area floor space. It also simplifies the upgrading of in-place systems, allowing existing units to meet LEED requirements without major equipment modification.
Standard pleated filters remove nuisance dusts, lint and contaminants associated with staining, and are primarily designed to protect equipment and act as prefilters. As a stand-alone filter, the AP-Thirteen will perform these tasks and removes sub-micron particles, defined as lung-damaging by cognizant authorities. The AP-Thirteen, according to filtration application design manuals, can be used as the only filter for special process areas, electrical shops, paint shops, average general offices and laboratories. Other applications include analytical laboratories, electronics shops, drafting areas, conference rooms, and above-average general offices.
Built for today’s HVAC systems, the AP-Thirteen:
• Has 16 pleats per linear foot on 1", 15 pleats per linear foot on 2˝ and 11 pleats per linear foot on 4˝ nominal depths. The radial pleat design ensures full use of media area and a longer filter life.
• Includes a synthetic fiber blend with a unique media loft that provides high efficiency ASHRAE MERV 13 performance and high dust-holding capacity.
• Has a welded wire media grid backing, treated for corrosion resistance, preventing media oscillation or filter pack failure as filter pressure drop increases.
• Has a high wet-strength beverage board frame that creates a rigid and durable filter pack. The APThirteen will not bow or deflect.
These combined features allow the AP-Thirteen to outlast other MERV 13 pleated panels by a factor of 20% or more resulting in the lowest total cost of ownership (TCO)
|Manufacturer Part Number||406769-006|
|Performance Rating||MERV 13|
|Filters Out||MERV 13 LEED pleated air filters are designed to meet the air-filtration efficiency criteria required for earning points toward LEED (Leadership in Energy and Environmental Design) Green Building certification. MERV 13 air filters provide close to 90% efficiency for filtering particles between 3 and 10 microns in size (such as mold spores, dusting aids, and cement dust). They also provide between 80% and 85% efficiency for filtering particles between 1 and 3 microns in size (such as legionella, lead dust, humidifier dust, coal dust, and nebulizer droplets) and between 35% and 50% efficiency for filtering particles between 0.30 and 1 micron in size (such as bacteria, most smoke, sneeze nuclei, insecticide dust, copier toner, and face powder).|
|Air Filter Capacity||High Capacity|
|Media Area (sq. ft.)||4|
|Pleats per Linear Foot||16|
|Frame Material||High wet-strength beverage board|
|Airflow at Rated Capacity (CFM)||680|
|Maximum Operating Temperature||175° F (79° C)|
|Initial Resistance @ 350 fpm (inches w.g.)||0.36|
|Initial Resistance at Rated Airflow (inches w.g.)||0.36|
|Airflow @ 350 fpm (CFM)||680|
|Product Depth (in.)||0.88|
|Product Height (in.)||19.5|
|Product Width (in.)||13.5|
|Product Dimensions (in.)||19.5 x 13.5 x 0.88|
|Import Designation||Made in USA|
|Country of Origin||United States|
